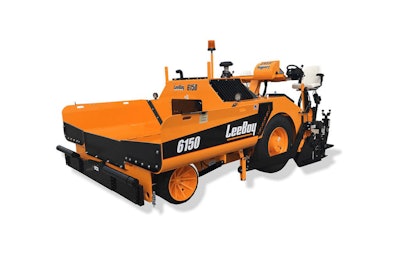

6150 Asphalt Pavers
The LeeBoy 6150 wheeled asphalt paver was truly designed with the paving professional in mind. With a quicker travel speed, this paver delivers a quality mat while easily maneuvering from point to point. Given traditional LeeBoy style and operation, the operator has a choice of working in a high-deck or low-deck configuration which can greatly benefit visibility depending on the application. Improved easy-to-reach service compartments allows quick access for regular maintenance requirements.
LBP Equivalent: 150DProduct Specifications
LeeBoy 6150 Asphalt PaverRubber WheeledLBP Equivalent: 150D
The following specifications are based on the 6150 Asphalt Paver manufactured by LeeBoy. Because of continuous equipment research and development, we reserve the right to change these specifications. For more information, questions or assistance preparing specifications, please contact your local LeeBoy Dealer.
1. Dimensions:
a. Length: 16' 6b. Width: 8' 6 transport 10' 7 hopper wings down c. Height: 7' 8 d. Total Weight (with screed): 17,550 lbs.
2. Engine:
a. Kubota turbocharged dieselb. Tier 4 Final - 74hp (55 kw) @ 2,200 RPM
3. Capacities:
a. Fuel: 36 gallonsb. Hydraulic: 36 gallonsc. Washdown tank: 7 gallons
4. Hopper:
a. Conveyor fedb. Side wings hydraulically fold in or outc. Hopper size: 7 ton d. Hopper height: 22
5. Paving Widths:
a. Machine has variable paving widths up to 15'
6. Paving Depths:
a. Depth: 0 to 6
7. Available Screeds:
a. Legend Propane Screed: Variable up to 15', weight 2,510 lbsView detailed Screed specificationsb. Legend Electric Screed: Variable up to 15', weight 2,600 lbsView detailed Screed specificationsc. Legend HD Screed: Variable up to 15', weight 3,010 lbsView detailed Screed specifications
8. Under Auger Material Cutoff:
a. Two independent hydraulically operated 4' wide gates located under the augers and constructed of at least .375 A-36 plate steel
9. Material Augers:
a. Two 12 replaceable segmented augers constructed of casted .625 thick Ni-hard steelb. Augers can be controlled automatically by sonic sensors (non-contacting)c. Single point lube system
10. Conveyors:
a. Two independent, hydraulically driven conveyors with automatic shut-offb. Dual 20.5 feeding conveyorsc. Conveyors are reversibled. Heavy-duty conveyor chain adjustmentse. Quad bearings, front and rear conveyorf. System has manual override function and automatic functions are controlled by a paddle and limit switch
11. Operator's Platform:
a. Full machine width platform with dual seats
12. Operator's Controls:
a. High deck/low deck configurationb. Dash panel is movable from left to right and contains all machine controlsc. Pivot steer and posi-tracd. Equipped with auger and conveyor bypasse. Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics
13. Steering:
a. Dual electronic steering wheels with joystick for forward, reverse operationb. Allows driver control from right or left side of paver
14. Washdown System:
a. Electric HD pump with two 25' x .375 diameter hose reels and spray nozzlesb. Built in pressure sensor and shutoffc. Citrus tank sight gauge
15. Hydraulic System:
a. Variable volume hydraulic pumps for each driveb. Fixed volume gear pump for augers and general functionsc. Fixed volume gear pump for conveyorsd. Fixed volume gear pump for generator and steering
16. Push Rollers:
a. Two 3 diameter rollers with sealed bearings mounted on a swivel frameb. Vertically adjustable push rollers, 7 of height adjustmentc. Adjustable height push rollers with self-cleaning scrapers
17. Wheeled Drive System:
a. Hydrostatic drive with 2-speed hydrostatic motorsb. Rear: 385/65 R22.5 heavy-duty hydroinflated truck tiresc. Front: steerable wheels, 12 x 22 diameter solid rubber tiresd. Paving speed: 0 to 228' per minute (2.6 mph)e. Travel speed: 0 to 660' per minute (7.5 mph)
18. Additional Standard Equipment:
a. Back-up alarmb. Lockable fuel and hydraulic capsc. LED beacon lightd. LED work light packagee. Horn
19. Optional Equipment:
a. Wiring only, grade controls (Topcon)b. Sonic grade control, one side (Topcon)c. Dual grade control (Topcon)d. Dual grade and slope (Topcon)e. Umbrella
20. Training, Support and Company
a. Training and support manualsb. Optional on-site operator training by Dealerc. Two-year, unlimited hours warranty against any manufacturer defectsd. Extended warranty availablee. 55+ years manufacturing experiencef. ISO 9001 Certifiedg. Sourcewell Contract #052417-VTLh. Manufactured in the USA
