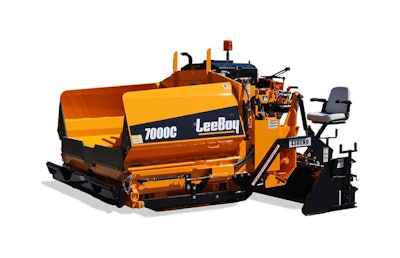

7000C Asphalt Pavers
Using our proven Legend Screed technology, the LeeBoy 7000C delivers a quality end result while maintaining extreme versatility. This large capacity paver is a classic entry-level conveyor paver able to maneuver flawlessly around obstacles in smaller operational areas such as parking lots and driveways. Highlighting the industry's widest conveyor system within its class, the 7000C quickly preforms the job it has set to accomplish - laying a consistent, presentable mat each time.
Product Specifications
LeeBoy 7000C Asphalt Paver
The following specifications are based on the 7000C Asphalt Paver manufactured by LeeBoy. Because of continuous equipment research and development, we reserve the right to change these specifications. For more information, questions or assistance preparing specifications, please contact your local LeeBoy Dealer.
1. Dimensions:
a. Length: 11'b. Width: 8'6 transport10' hopper wings down c. Height: 7', adjustable to 6'4d. Total Weight (with screed): 13,000 lbs.
2. Engine:
a. Kubota turbocharged dieselb. Tier 4 Final - 64 hp (48kw) @ 2,400 rpm
3. Capacities:
a. Fuel: 13 gallonsb. Hydraulic: 40 gallonsc. Washdown tank: 7.5 Gallons
4. Hopper:
a. Hopper size: 6 tonb. Hopper height: 22c. Hopper is hydraulically raiseable to allow for cleaning and service
5. Paving Widths:
a. Variable up to 13'6. Paving Depths:a. Includes manual flights screws positioned on the screedb. Depth: 0 to 6c. OPTIONAL: Electrically operated thickness screws with toggle switches connected to a heavy-duty coil cord to allow operation from either side of the paver
7. Available Screeds:
a. Legend Propane Screed: Variable up to 13', weight 1,775 lbsView detailed Screed specifications
8. Under Auger Material Cutoffs:
a. Two independent hydraulically operated 4' wide gates located under the augers and constructed of at least .25 A-36 plate steel
9. Material Augers:
a. Two independently automatically or manually operated hydraulic casted segmented augers constructed with .625 AR 4140 HT (heat treated) steel with replaceable flights b. Augers are 9 diameterc. Unit is wired for sonic auger controls
10. Conveyors:
a. Dual 36 feeding conveyorsb. Each conveyor is independent with automatic cut-offs
11. Operator's Platform:
a. Full machine width platform with left hand seat
12. Operator's Controls:
a. All control levers are on the left sideb. Right side levers include left and right drive control, right auger, right screed extensionsc. Includes a horn and back-up alarmd. Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
13. Steering:
a. Independent hydrostatic steering from the left to right side of machine
14. Washdown System:
a. Electric HD pump with one 15' x .3125 diameter hose and two hose wrapsb. Built in pressure sensor and shutoffc. Citrus tank sight gauge
15. Hydraulic System:
a. Variable volume hydraulic pumps for each driveb. A constant volume pump for conveyors and a constant volume pump for all other hydraulic functionsc. Equipped with hydraulic oil cooler
16. Push Rollers:
a. Two 3 diameter rollers with sealed bearings mounted on swivel frame
17. Track Drive System:
a. Hydrostatically powered, self-cleaning friction drive tracks consisting of two drive tires, one roller and hydraulically adjustable front idlerb. Drive mechanism consists of two torque hubs for variable speedsc. Track size: 14 wide x 5' long steeld. Paving speed: 0 to 210' per minute (2.4 mph)e. Travel speed: 0 to 210' per minute (2.4 mph)
18. Additional Standard Equipment:
a. Back-up alarmb. LED beacon lightc. Wired for sonic auger, sensor and cords
19. Optional Equipment:
a. Truck hitchb. Failsafe brake with anti-creepc. Second seatd. LED work light packagee. Sonic auger, sensor and cordsf. Hose reel, limited to oneg. Electric screws for grade controlsh. Wiring only, grade controls (Topcon), includes A/M modulesi. Sonic grade control, one side (Topcon)
20. Training, Support and Company
a. Training and support manualsb. Optional on-site operator training by Dealerc. Two-year, unlimited hours warranty against any manufacturer defectsd. Extended warranty availablee. 55+ years manufacturing experiencef. ISO 9001 Certifiedg. Sourcewell Contract #052417-VTLh. Manufactured in the USA
