8515

8515E Asphalt Pavers

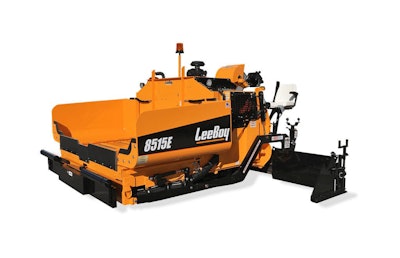

Sleek, modern and low-profile are three words that immediately come to mind when evaluating the LeeBoy 8515E Asphalt Paver. Featuring an engine hood height of 69 inches (1.75 m) and a sliding control station, the 8515E gives the operator an extremely clear and comfortable view of their surroundings. With a class-leading tunnel size and self-cleaning conveyor bars, this machine is built to perform at the highest level. Easy-to-access, convenient maintenance areas are also a highlight of machine ownership.

Technical Specifications
Operator's Controls
High deck/low deck configurationIncludes dual electronic steerDash panel is movable from left to right and includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lightsColor graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics

Dimensions
Length: 13' 5Width: 8' 6 transport10' hopper wings downHeight: 8'Total Weight (with screed): 17,600 lbs

Engine
Kubota turbocharged dieselTier 4 Final - 74 HP (55.4 kW) @ 2,200 rpm

Capacities
Fuel: 19 gallonsHydraulic: 67 gallonsWashdown tank: 7 gallons

Paving Widths
Machine has variable paving widths up to 15'
