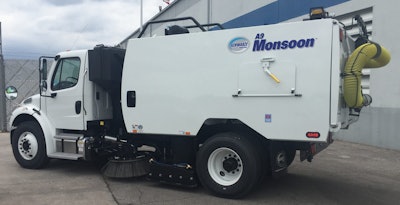

When it comes to heavy-duty, chassis-mounted, regenerative air street sweepers, few can match the prowess of the Schwarze® A9 Monsoon™. With a whopping 9.6 cubic yard hopper, the A9 Monsoon™ stands tall in the industry, boasting the largest standard hopper available. This superior capacity means more sweeping and less dumping, making the A9 Monsoon™ a preferred choice in regions where leaf sweeping is not just a task but a way of life.

The A9 Monsoon™ doesn’t just stop at offering a large hopper. It also features the largest dump door in its class, enabling a fully packed hopper to easily empty. Combined with large flow area saw tooth drop-down screens, the A9 Monsoon™ ensures debris capacity all the way to the screens without plugging.

But what sets the A9 Monsoon™ apart is its patent-pending single-engine configuration. The Schwarze A9 Monsoon SE does not compromise performance and can perform most typical sweeping at low single-engine speeds. This translates into low noise and operational costs. When full power is needed for heavy jobs like construction and spring cleanup, the A9 Monsoon SE delivers the same amount of sweep power available on the twin-engine A9 Monsoon.

In essence, the A9 Monsoon™ is a heavy-duty workhorse that offers a high-quality option with a low cost of ownership. We invite you to experience the A9 Monsoon™ and see why many trust Schwarze Industries for their sweeping needs. After all, you should come to the people you know, for the products you trust.

Specifications

CHASSIS

• Make: Can be mounted on various chassis to meet requirements
• Length: 225 - 275 inches
• Width: 96 inches
• Steering: Left side (Dual steering optional)
• Fuel: Diesel or CNG
• Lighting: Rear beacon light standard (Barlight, strobe lights & arrow board optional)
• Accessories: Backup camera (Spare tire & wheel covers optional)

DEBRIS PICKUP SYSTEM

• Technology: Regenerative Air
• Type: Sweeping head with dual chambered full-width adjustable blast orifice & suction
• Width: 90 - 144 inches
• Surface area: 3,240 square inches
• Construction: 10 gauge abrasion-resistant steel with rubber seal flaps.
• Skids/Dirt shoes: Double wide tungsten carbide skids
• Operation Direction: Forward & reverse
• Suspension Head/Main Broom: 4 adjustable springs
• Control: Hydraulic raise & lower
• Hopper connection: Two 14-inch wire-reinforced molded rubber hoses
• Cleaning assist: Optional Deluge with 2.5 Hose equipped with a camlock coupler
• Optional configurations: Spring or power 8 catch basin cleaning hand hose with optional pendant control; Front-mounted FOD magnet bar

STANDARD SWEEPER ENGINE (TWIN ENGINE ONLY)

• Make: John Deere 4045T Tier 4 Final
• Type: 4-cylinder turbo-charged diesel
• Displacement: 275 cubic inches
• Horsepower: 134 hp @ 2400 rpm
• Torque: 398 ft lb @1600 rpm
• Safety shutdown: Three-point automatic
• Throttle control: Electronic
• Protection: Integrated shroud with sound-deadening material
• Optional engine: Cummins QSB 3.8, 130 hp

CONTROL SYSTEM

• Controls: Flat panel display; rocker switch banks; Hopper control joystick; On swivel stand
• Instrumentation: Flat panel display; Tachometer; Hourmeter; Voltmeter; Temperature gauge; Oil pressure gauge; Warning icons
• Voltage: 12 V
• Alternator: 90 amp
• Circuit breakers: Blade fuse

HYDRAULIC SYSTEM

• Type: Dual output 2 section
• Pump capacity: 8 gpm @ 1800 rpm per section for 16 gpm total
• Drive: Direct gear
• Maximum pressure: 2750 psi
• Reservoir: 25 gallons
• Filter: 10 micron spin-on
• Protection: Pressure relief valve
• Controls: Electro-hydraulic

FAN SYSTEM

• Type: Closed-face radial Whisperwheel
• Drive: Direct via 5 groove banded power v-belt
• Construction: Hardox steel
• Diameter: 32.75 inches
• Housing lining: Bolt-in corded rubber

BROOMS

• Type: Vertical steel digger (Gutter Broom Override optional)
• Location: Right; left; forward of pickup head
• Diameter: 44 inches
• Drive: Hydraulic
• Suspension: Torque-sensing spring
• Wear adjustment: Automatic
• Down Pressure: Manual
• Speed: Variable non-reversing
• Segments: 5 each side disposable
• Tilt angle adjustment: In-cab controls
• Damage control: Object avoiding lateral flexibility; Water draining
• Visibility: LED work light; 12 dual parabolic mirrors optional; Up to 3 additional cameras optional

DEBRIS HOPPER

• Volume capacity: 9.6 cubic yards
• Construction: Carbon (Stainless optional)
• Dump angle: 53 degrees
• Floor angle: 3 degrees
• Lifting: Twin hydraulic cylinders
• Dump door: Hydraulic open, close, lock at rear
• Inspection: 1 on each side, pressure vessel lock
• Dump height: 33 inches
• Debris screens: Sawtooth dropdown (Remote or auto dropdown optional)
• Safety: Dual body props; rearview camera; backup alarm; fire extinguisher
• Hopper options: Deluge with 2.5 Hose equipped with a camlock coupler; Dump assist shaker; Hopper drain

DUST CONTROL SYSTEM

• Type: Dual Electric diaphragm pump with run-dry capability
• Capacity: 250 - 615 gallons
• Tank construction: Polyethylene
• Fill diameter: 2.5 inches
• Fill hose: 25 feet
• Controls: Electric in-cab
• Nozzles: 2 at each side broom; 5 around suction head; 2 inside suction nozzle; 2 at front axle; 4 inside hopper
• Water level Indicator: In-cab
• Water pressure: 60 PSI; 2000 PSI High with handgun & hose optional

BACKUP HYDRAULIC SYSTEM

• Type: Gear type driven by electric motor
• Function: Lower hopper; open/close hopper door; raise brooms and pickup head

Miscellaneous

• Paint: One coat of sealer/primer and two coats of Dupont imron elite polyurethane in standard white color (Special colors or graphics wrap optional)
