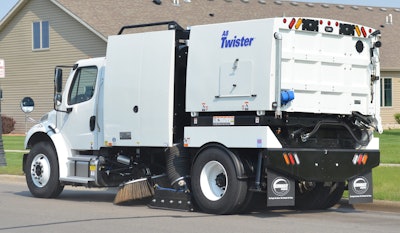

The Schwarze A8 Twister: The Ultimate Sweeper
Introducing the Schwarze A8 Twister, a sweeping marvel that offers an impressive 6-cubic yard, fully stainless steel hopper. What sets this machine apart is its full range of dumping heights, varying from as low as 2 feet to a towering 12 feet. This is made possible by the trusted Schwarze scissors lift, a feature consistently employed in our M6 Avalanche models for years.
With the A8 Twister, low dumping can be achieved without deploying stabilizers. This means that despite its hefty 6-yard capacity, the A8 Twister can carry and offload at a speed comparable to some of the most popular low-dump regenerative air models. In essence, with the new A8 Twister, it's like you're getting two machines for the price of one.
But wait, there's more! We have a patent pending on our Single Engine Configuration. With the A8 Twister SE, there is absolutely no compromise on performance compared to its twin-engine version. It can perform most typical sweeping tasks at low single-engine speeds, ensuring reduced noise levels and operational costs.
When it comes to heavy-duty jobs like construction or spring cleaning, the A8 Twister SE doesn't disappoint. It delivers the same amount of sweeping power as the twin-engine A8 Twister. Designed to operate exactly like its twin-engine counterpart, the A8 Twister SE requires little to no additional training for operators and technicians.
Experience the power, efficiency, and versatility of the Schwarze A8 Twister. It's not just a sweeper; it's a game-changer.
Based on your input, it looks like you're sharing the specifications of a street sweeper. Here's a more organized and clearer version of your information.
Specifications
CHASSIS
- Make: Mounts on various chassis to meet requirements
- Length: 225 in (6,477 mm) to 275 in (6,985 mm)
- Width: 96 in (2,438 mm)
- Steering: Left side; Dual steering optional
- Fuel: Diesel
- Lighting: Chassis light standard; Barlight, strobe lights & arrow board optional
- Accessories: Backup camera; Spare tire & wheel covers optional
DEBRIS PICKUP SYSTEM
- Technology: Regenerative Air
- Type: Sweeping head with dual chambered full-width adjustable blast orifice & suction
- Width no brooms: 90 in (2,286 mm)
- Width one broom: 117 in (2,972 mm)
- Max. width: 144 in (3,658 mm)
- Surface area: 3,240 sq in (20,903 sq cm)
- Construction: 10 gauge abrasion-resistant steel with rubber seal flaps.
- Skids/Dirt shoes: Double wide tungsten carbide skids
- Opp. Direction: Forward & reverse
- Suspension Head/Main Broom: 4 adjustable springs
- Control: Hydraulic raise & lower
- Hopper conn.: Two 14 in (355.6 mm),3/8 in (9.5 mm) wire-reinforced molded rubber hoses
- Cleaning assist: Optional Deluge with 2 1/2 Hose equipped with a camlock coupler
- Optional conf.: Spring or power 8 catch basin cleaning hand hose with optional pendant control; Front mounted FOD magnet bar
STANDARD SWEEPER ENGINE (TWIN ENGINE ONLY)
- Make: John Deere 4045T Tier 4 Final
- Type: 4-cylinder turbo-charged diesel
- Displacement: 275 cu in. (4.5 L)
- Horsepower: 134 hp (100 kw) @ 2400 rpm
- Torque: 398 ft lb (540 Nm) @1600 rpm
- Air cleaner: Centrifugal pre cleaner; dry type with safety element & restriction indicator
- Oil filter: Full-flow spin-on
- Stroke: 5 in (127 mm)
- Bore: 4.20 in (106 mm)
- Safety shutdown: Three-point automatic
- Throttle control: Electronic
- Protection: Enclosed compartment
- Optional engine: Cummins QSB 3.8, 130 hp
CONTROL SYSTEM
- Controls: Flat panel display; rocker switch banks; Hopper control joystick; On swivel stand
- Instrumentation: Flat panel display; Tachometer; Hourmeter; Voltmeter; Temperature gauge; Oil pressure gauge; Warning icons
- Voltage: 12 V
- Alternator: 65 amp
- Circuit breakers: Blade fuse
HYDRAULIC SYSTEM
- Type: Dual output 2 section
- Pump capacity: 8 gpm (30 lpm) @ 1800 rpm (30 lpm) per section for 16 gpm total
- Drive: Direct gear
- Max.pressure: 2750 psi (190 bar)
- Reservoir: 25 gal (94 L)
- Filter: 10 micron; spin on
- Suction strainer: 100 mesh;
- Protection: Pressure relief valve
- Controls: Electro-hydraulic
FAN SYSTEM
- Type: Closed-face radial Whisperwheel
- Drive: Direct via 5 groove; banded power v-belt
- Construction: Hardox steel
- Balance: Less than 1.5 grams on 2 sides
- Diameter: 32.75 in (832 mm)
- Housing lining: Bolt-in corded rubber
- Mounting: 2 re-greaseable sealed bearings
- Vacuum enh.: Fan leaf bleeder door for heavy/light material with in-cab indicator
BROOMS
- Type: Vertical steel digger; Gutter Broom Override (GEO) optional
- Location: Right; left; forward of pickup head
- Diameter: 44 in (1,118 mm)
- Drive: Hydraulic
- Suspension: Torque-sensing spring
- Wear adj.: Automatic
- Down Pressure: Manual
- Speed: Variable; non-reversing
- Segments: 5 each side; disposable
- Tilt angle adj.: In-cab controls
- Damage control: Object avoiding lateral flexibility; Water draining
- Visibility: LED work light; 12 dual parabolic mirrors optional; Up to 3 additional cameras optional
DEBRIS HOPPER
- Vol. capacity: 6 cu yd (4.59 cu m)
- Construction: Stainless
- Dump angle: 50 degrees
- Floor angle: 0 degrees
- Lifting: Twin hydraulic cylinders scissor-lift
- Dump door: Full height/full width open/close/lock hydraulically at the driver side
- Inspection: 1 door on each side of the hopper
- Dump height: Variable 24 in (610 mm) to 144 in (3,658)
- Debris screens: Sawtooth dropdown
- Safety: Dual body props; rearview camera; backup alarm; fire extinguisher
- Hopper options: Deluge with 2 1/2 Hose equipped with a camlock coupler; Dump assist shaker; Hopper drain
DUST CONTROL SYSTEM
- Type: Dual Electric diaphragm pump with run-dry capable
- Capacity: 250 gallon (946 L) to 600 gallon (2,271 L)
- Tank constr.: Polyethylene
- Filter: 50 mesh; Cleanable
- Fill diameter: 2.5 in (63.5 mm)
- Fill hose: 25 ft (7,62 m)
- Controls: Electric; in-cab
- Nozzles: 2 at each side broom; 5 around suction head; 2 inside suction nozzle; 2 at front axle; 4 inside hopper
- Water level Ind.: In-cab
- Water press.: 60 PSI; 2000 PSI High with handgun & hose optional
BACKUP HYDRAULIC SYSTEM
- Type: Gear type; driven by electric motor
- Function: Lower hopper; open/close hopper door; raise brooms and pickup head
Miscellaneous
- Paint: One coat of sealer/primer and two coats of Dupont imron elite polyurethane in standard white color; Special colors or graphics wrap optional
