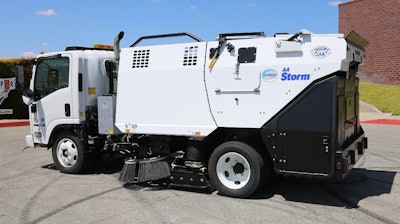

Schwarze Industries' A4 STORM: The Game-Changer in Street Sweeping (NON-CDL)
Unleashing a 4.5 Yard Regenerative Air Sweeping Powerhouse
Step into the future of street sweeping with Schwarze Industries' redefined and enhanced A4 Storm. This is not just any sweeper; it's a full-sized, high-performance street sweeper ingeniously wrapped in a compact, ultra-manageable package.
Let's talk features. The A4 Storm doesn't just meet the standard set by similar competitor models - it raises the bar. It outshines in all major performance categories, from dump height, water capacity, broom size, and sweep width to ergonomics. And, let's not forget the most critical factor, sweeping performance, where the A4 Storm reigns supreme.
But that's not all. The A4 Storm's short wheelbase and high maneuverability make it an unparalleled asset for construction site cleanup where limited space is challenging. It's not just a sweeper; it's a problem solver.
The A4 Storm boasts a large, full-size, top-performing sweeping head and fan system. It features robust, corrosion-resistant polymer toolboxes designed to stand the test of time. The standard water system holds 130 gallons, but why stop there? You can boost the unit’s capacity to a whopping 196 gallons with an additional 66-gallon tank.
Experience the Schwarze Industries' commitment to quality and superior products with the A4 Storm. It's more than a sweeper. It's a revolution in street cleaning. Trust in our expertise and let the A4 Storm exceed your expectations. Your streets deserve the best. They deserve the A4 Storm.
Specifications
Chassis
- Make: Isuzu NPR; Freightliner M2
- Dimensions: 238 in (6,045 mm) length x 85 in (2,169 mm) width
- Steering: Left side; Dual steering optional
- Fuel: Diesel; Gas
- Lighting: Chassis light standard; Barlight, strobe lights & arrow board optional
- Accessories: Backup camera; Spare tire & wheel covers optional
Debris Pickup System
- Technology: Regenerative Air
- Type: Sweeping head with dual chambered full-width adjustable blast orifice & suction
- Widths: 80 in without brooms; 100 in with one broom; max. 120 in
- Surface Area: 2,160 sq in
- Construction: 10 gauge abrasion-resistant steel with rubber seal flaps
- Skids/Dirt Shoes: Double wide tungsten carbide skids
- Direction: Forward & reverse
- Suspension: 4 adjustable springs
- Control: Hydraulic raise & lower
- Hopper Connection: Two 12 in wire-reinforced molded rubber hoses
- Cleaning Assist: Deluge with 2 1/2 Hose equipped with a camlock coupler optional
- Optional Configuration: 6 catch basin cleaning hand hose; Front mounted FOD magnet bar
Standard Sweeper Engine (Twin Engine Only)
- Make: Cummins QSF2.8L Tier 4F
- Type: 4-cylinder turbo-charged diesel
- Displacement: 171 cu in (2.8 L)
- Horsepower: 74 hp @ 2500 rpm
- Torque: 221 ft lb @1600 rpm
- Air Cleaner: Dual element, dry-type with restriction indicator; centrifugal pre-cleaner
- Oil Filter: Full-flow spin-on
- Stroke: 3.94 in
- Bore: 3.70 in
- Safety Shutdown: Three-point automatic
- Throttle Control: Electronic
- Protection: Shielded; Shroud with sound deadening material optional
Control System
- Controls: Rocker switches; On swivel stand
- Instrumentation: Digital display Tachometer; Hourmeter; Voltmeter; Temperature; Oil pressure
- Voltage: 12 volt
- Alternator: 120 amp
- Circuit Breakers: Blade fuse
Hydraulic System
- Type: Fixed displacement gear
- Pump Capacity: 5.1 gpm @ 1800 rpm
- Drive: Direct gear
- Max Pressure: 2500 psi
- Reservoir: 9.5 gal
- Filter: 10 micron; spin on
- Suction Strainer: 100 mesh
- Protection: Pressure relief valve
- Controls: Electro-hydraulic
Fan System
- Type: Closed-face radial Whisperwheel
- Drive: Direct via 5 groove; banded power v-belt
- Construction: Hardox steel
- Balance: Less than 1.5 grams on 2 sides
- Diameter: 30 in
- Housing Lining: Bolt-in corded rubber
- Mounting: 2 re-greaseable sealed bearings
- Vacuum Enhancement: Fan leaf bleeder door for heavy/light material with in-cab indicator
Brooms
- Type: Vertical steel digger; Gutter Broom Override (GEO) optional
- Location: Right; left; forward of pickup head
- Diameter: 39 in
- Drive: Hydraulic
- Suspension: Torque-sensing spring
- Wear Adjustment: Automatic
- Down Pressure: Manual
- Speed: Variable; non-reversing
- Segments: 4 on each side, disposable
- Tilt Angle Adjustment: Manual; In-cab controls optional
- Damage Control: Object avoiding lateral flexibility; Water draining
- Visibility: LED work light; 12 dual parabolic mirrors optional; Up to 3 additional cameras optional
Debris Hopper
- Volume Capacity: 4.5 cu yd
- Construction: Carbon; Stainless optional
- Dump Angle: 88 degrees
- Floor Angle: 0 degrees
- Lifting: Twin hydraulic cylinders
- Dump Door: Hydraulic open, close, lock at rear
- Inspection: 1 door on each side of the hopper; full load alarm optional
- Dump Height: 77 in
- Debris Screens: Dropdown
- Safety: Dual body props; rearview camera; backup alarm; fire extinguisher
- Hopper Options: Deluge with 2 1/2 Hose equipped with a camlock coupler; Dump assist shaker; Hopper drain
- Storage: Two lockable storage areas at the rear of the sweeper
Dust Control System
- Type: Electric diaphragm pump with run-dry capable
- Capacity: 130 gal to 196 gal
- Tank Construction: Polyethylene
- Filter: 50 mesh; Cleanable
- Fill Diameter: 2.5 in
- Fill Hose: 25 ft
- Controls: Electric; in-cab
- Nozzles: 2 at each side broom; 4 around suction head; 4 inside hopper; 7 across front bumper optional
- Water Level Indicator: In-cab
- Water Pressure: 60 PSI; 1500 PSI High with handgun & hose optional
Backup Hydraulic System
- Type: Gear type; driven by electric motor
- Function: Lower hopper; open/close hopper door; raise brooms and pickup head
Miscellaneous
- Paint: One coat of sealer/primer and two coats of Dupont imron elite polyurethane in standard white color; Special colors or graphics wrap optional
