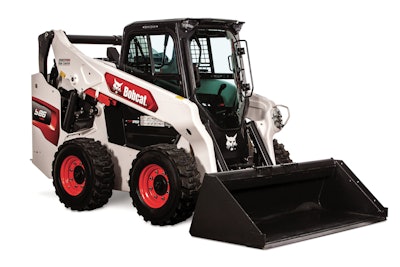

The Bobcat S86 skid steer loader offers lifting and material handling performance on construction sites. This machine is powered by a Stage V compliant 3.4, Bobcat engine. During use, the engine produces 78 kW (105 HP) at 2600 RPM. Just like all R-Series loaders, the engine is mounted in-line with direct drive, which promotes cooling capacity of the engine and hydraulic components.
Operators have a choice of three different auxiliary flow outputs. There is a standard flow configuration providing 87 l/min for applications such as load and carry, or where low hydraulic flow attachments are used. Bobcat also offers two additional hydraulic performance functions using the new Electronic Displacement Control (EDC) Pump: a High Flow function giving 138 l/min and a new Super Flow function taking auxiliary flow to 159 l/min.
The Five Coupler Block (standard with the Super Flow option) provides a flexible approach to running different attachments. From one common source, the operator can attach both standard or high flow approved attachments to the smaller sized ½-in. quick couplers. Then when using Super Flow, the use of the ¾-in. couplers caters to approved advanced attachments.
The S86 can power a wide variety of attachments including those specifically designed for super-flow hydraulics such as super-flow snowblowers, cold planers and forestry drum mulchers. Several attachments require control of more than one function, and Bobcat’s seven-pin attachment harness activates power and fingertip control functions while eliminating the need for the mechanical relays.
Features
- Premium Power Performance
- Three hydraulic flow options—standard, high and super flow—in one machine
- Cast steel lift arm sections
- Standard dual-direction bucket positioning
- Standard automatic ride control
- Standard rearview camera
- One-piece, sealed and pressurized cab
- A non-DPF emissions solution
- Workgroup response and drive response
- Automatic heat and air conditioning
- Optional Machine IQ wireless communication kit
