COMPACT WHEEL LOADERS
321F
KEY SPECS
LIFT CAPACITY AT FULL HEIGHT
8,354 lb (3,785 kg)
OPERATING WEIGHT
13,303 lb (6,034 kg)

Overview

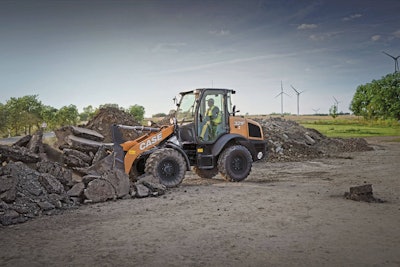

321F COMPACT WHEEL LOADER
The largest in our lineup of Tier 4 Final F Series Compact Wheel Loaders is the stout 321F with Z-Bar linkage. The 321F delivers a full-height lifting capacity of more than 8,000 lbs. (3,640 kg) and bucket breakout force of up to 11,000 lbs while still maintaining a low overall height of only 8 ft. 10 in. (2,681 mm). Suspension upgrades, a standard skid steer coupler and improved auxiliary hydraulics help you tackle more tasks while an ergonomically designed cab keep operators comfortably in control.

Features and benefit
Productivity
With a lower center of gravity and Z-bar linkage, the 321F has improved lifting power and breakout force. The suspension has been enhanced with a 20 degree oscillating rear axle that works independently of the cab for greater operator comfort and load control. An optional front and rear differential lock provides on-demand traction in loose or uneven terrain, and the high-speed option lets you travel at speeds up to 21.8 mph (35 km/h).
The High Flow option comes with Creep Speed, which provides a maximum hydraulic flow at constant speed in the 0 to 3.4 mph (5.5km/h) range, ideal for running attachments like cold planers and snow blowers. The front electrical socket and Return Depressurized Drain complete the package.

Fuel Efficiency
The 321F features a maintenance-free Tier 4 emission solution. This means no regeneration downtime, no Diesel Particulate Filters (DPFs) to replace, no extreme exhaust temperatures, no after-treatment fluids to add. Just get in and go. It's the best match for versatile, on-the-go machines of this size.

Comfort and Visibility
The F Series cab offers more space, greater all-around visibility, and an intuitive control interface to simplify operation. And with Creep Speed, Return-to-Dig and Ride Control options, it's even easier to maximize productivity throughout the day. Air Seat, Bluetooth Radio and LED worklight options provide an enjoyable work environment for operators.

Serviceability
With a tilt-up hood and friendlier access to daily checkpoints, the F Series Compact Wheel Loaders were redesigned to simplify serviceability. Radiators, filters, hydraulics and the engine are all easily accessible so routine maintenance can be done in a matter of minutes.
