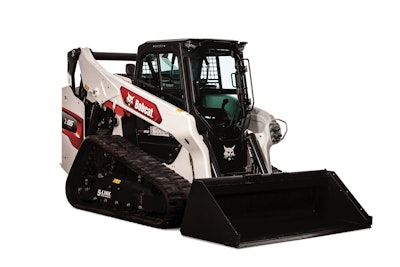

The Bobcat T86 compact track loader is designed for a variety of tough jobs of construction sites. The machine is powered by a Stage V compliant 3.4, Bobcat engine. During use, the engine produces 78 kW (105 HP) at 2600 RPM. Just like all R-Series loaders, the engine is mounted in-line with direct drive, which promotes cooling capacity of the engine and hydraulic components.
Operators have a choice of three different auxiliary flow outputs. There is a standard flow configuration providing 87 l/min for applications such as load and carry, or where low hydraulic flow attachments are used. Bobcat also offers two additional hydraulic performance functions using the new Electronic Displacement Control (EDC) Pump: a High Flow function giving 138 l/min and a new Super Flow function taking auxiliary flow to 159 l/min.
The Five Coupler Block (standard with the Super Flow option) provides a flexible approach to running different attachments. From one common source, the operator can attach both standard or high flow approved attachments to the smaller sized ½-in. quick couplers. Then when using Super Flow, the use of the ¾-in. couplers caters to approved advanced attachments.
There are two lift path options on the machine. Vertical lift path machines provide more reach at full lift height, while radius lift path models offer maximum reach at truck bed height. The patented single-plane design reduces side-to-side lift arm movement and minimizes load on the pins.
The cast-steel lift arm sections of the T86 loader are durable for performance on the job site.
Features
- Premium Power Performance
- Three hydraulic flow options—standard, high and super flow—in one machine
- Cast steel lift arm sections
- Standard dual-direction bucket positioning
- Standard automatic ride control
- Standard rearview camera
- One-piece, sealed and pressurized cab
- A non-DPF emissions solution
- Workgroup response and drive response
- Automatic heat and air conditioning
- Optional Machine IQ wireless communication kit
