F800W WHEELED PAVERS
0MY COMPARISON
PICTURESDIMENSIONS

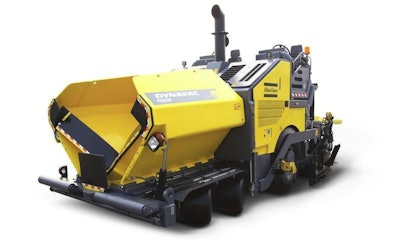

Introducing Dynapac F800W 8 ft Wheel paver, a perfect addition to the existing highway class paver line. Dynapac F800W combines innovative features and decades of experience, making it as one of the best 8ft highway class pavers available in the US market.
Basic paving width: Max. paving width: 19 ftMax. layer thickn.: Theor placement cap.: 1,000 t/hMassesPaver weight (incl. standard screed) 38,150 lbsTractor weight 31,900 lbs
Traction
Paving speed 0-116 fpmMaximum paving speed 255 fpmTransport speed 11 mphTurning radius 5 ft
Engine
Manufacturer/Model Cummins QSB 6.7-173Rated power 173 hp @ 2,300 rpmRated power (Eco mode) 180 hp @ 1,800 rpmEmissions according to STAGE IV / TIER 4fElectrical system 24V / 70AGenerator (tractor mounted) 34 kWFuel tank capacity 80 gal
Alternative Engine
Manufacturer/Model OperationControl consoles Dual Swing outDashboard Ergonomic with Multifunction display /consoleSimplified smart switches, Cup holder
Conveyor
Conveyor type Dual bar feederConveyor width inConveyor width 2 x 20 inConveyor control Two independent conveyor half's withinfinitely variable speed. Both half's canbe controlled separately. Conveyor controlindependent of Augers by Ultrasonic sensors.
