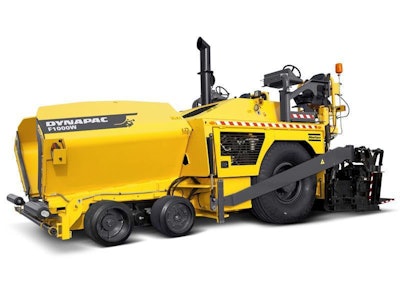

DYNAPAC F1000W (T4) WHEELED PAVERS
0MY COMPARISON
PICTURESDIMENSIONS
The DYNAPAC F1000W is a wheeled finisher that is used for laying bituminous mixed material, rolldown or lean-mixed concrete, track-laying ballast and unbound mineral aggregates for foundations for paving.

Basic paving width: 10 ftMax. paving width: 26 ftMax. layer thickn.: 12 inTheor placement cap.: 1,600 t/hMassesTractor weight 33,400 lbs

Traction
Paving speed 0-128 ft/minMaximum paving speed 285 fpmTransport speed 0 mph

Engine
Manufacturer/Model Cummins QSB 6.7-220Type 6 cylinder water cooled dieselengine with hydraulically driven fanRated power 220 hp @ 2,000 rpmEmissions according to Tier 4iElectrical system 24 VoltGenerator (tractor mounted) 34 KW, 60 Hz, Drive: HydraulicFuel tank capacity 98 gal

Alternative Engine
Manufacturer/Model Cummins QSB 6.7-225 (Tier 4 Final)Type 6 cylinder water cooled dieselengine with hydraulically driven fanRated power, SAE J1995 225 hp @ 2,000 rpm

Operation
Control consoles Dual Swing outDashboard Ergonomic dashboard with Multifunctiondisplay on each console
Conveyor
Conveyor type Dual bar feederConveyor width inConveyor control Two independent conveyor half's withinfinitely variable speed. Both half's canbe controlled separately. Conveyor controlindependent of Augers by Ultrasonic sensors.
