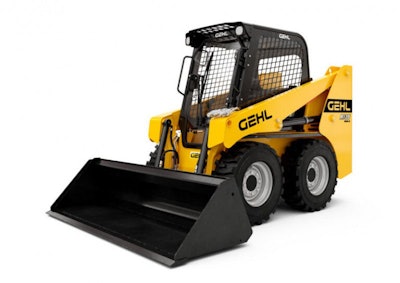

The R135 GEN: 2 skid loader is an great option that includes a compact body style with a little extra lifting capacity compared to our smallest loaders. Still able to be easily transported and the operator experience is very intuitive. New low effort controls in the GEN:2 help with operator fatigue after a long day behind the controls. Air-ride seat and other upgradeable options available to increase comfort if long hours of operation is more common than not for your new R135 GEN:2.
BrandGEHLMarketsAgriculture, Construction
AssortimentsRegionR1Additional countryJapan
Technical characteristicsWheelbase37 in
CapacitiesRated Operating Capacity1349 lbsRated Operating Capacity with Optional Counterweight1499 lbsFuel tank16 US galReservoir Capacity9 US galDisplacement1 US gal
CapacitiesRated Operating Capacity1349 lbsRated Operating Capacity with Optional Counterweight1499 lbsFuel tank16 US galReservoir Capacity9 US galDisplacement1 US gal
Weight and dimensionsRear departure angle25 °Overall Operating Height - Fully Raised144 inOverall Height to Top of ROPS76 inOverall length with bucket120 inDump height83 inDump reach - Full height23 inSeat to ground height33 inOverall width less bucket54 inOverall length - Less Bucket91 inClearance Circle - Rear54 inClearance Radius - Front with Bucket73 inHeight to Hinge Pin – Fully Raised110 inBucket Width54 inClearance Circle - Front with Bucket73 inClearance Circle - Front without Bucket44 inDump angle at full height40 °Unladen weight5130 lbsGround clearance8 inStandard tyres10.00x16.5 HD\PerformancesTravel speed (unladen)8 mph
EngineEngine model4TNV88CMax. torque / Engine rotation146.20 Nm at 2800 rpmStarter (kW)2.30 kWGross Power (kW)34.30 kWEngine brand / normYanmar / Stage V / Tier 4Net Power (kW)33.20 kWBattery12 V
HydraulicsStandard flow - Auxiliary hydraulics70 l/min
Noise and vibrationEnvironmental noise (LwA)101 dB(A)Whole-Body Vibration (ISO 2631-1)0.81 m/s²Vibration to whole hand/arm1.77 m/s²
Performance loaderRollback at ground28 °
